Support Vector Machines in Depth
Problem Formulation

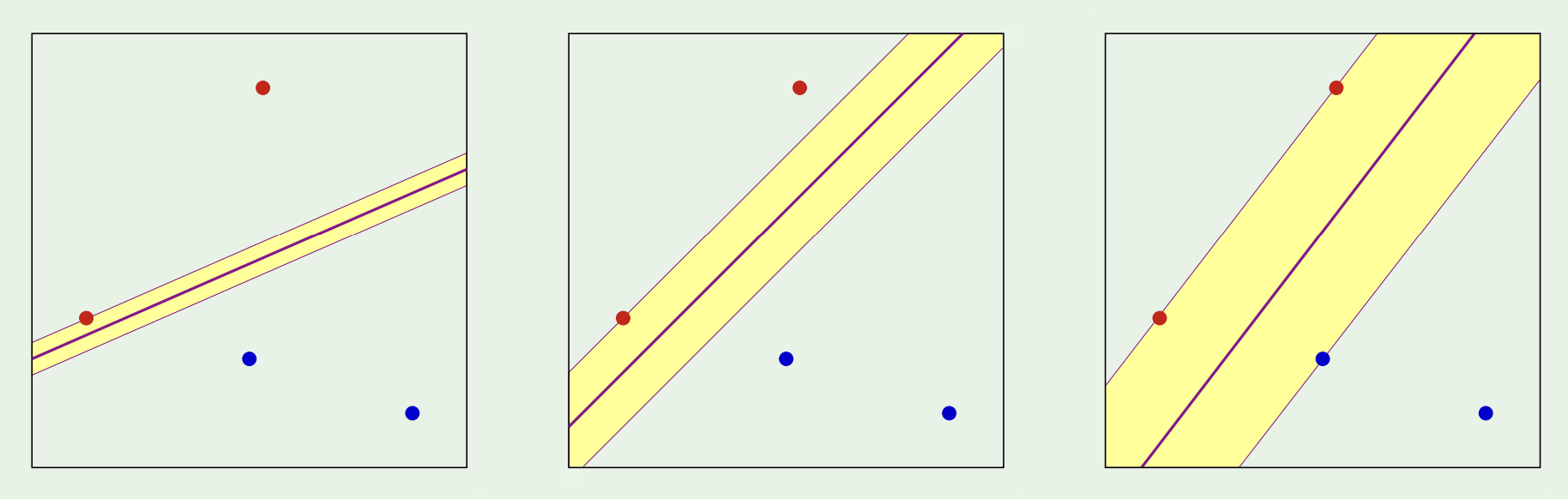

Classifying with good margin is always preferred over small margin
Fiding W with large margin
Let $x_{n}$ be the nearest point to the hyperpalne, $w^{T}$ x + b = 0.
| Let | $w^{T}$ $x_{n}$ + b | = 1 |
Lets take x’ and x’’ be two points lie on plane $w^{T}$ x + b = 0, note $w^{T}$ is a normal vector to plane.
$w^{T}$ x’ + b = 0
$w^{T}$ x’’ + b = 0
$w^{T}$(x’ - x’’) = 0
Distance between $x_{n}$ and plane
Lets define unit vector, the purpose of unit normal vector is to get perpendicular distance between plane and $x_{n}$ \(\hat{w} = \frac{w}{|w|}\)
\[\frac{w^{t}(x_{n} - x')}{|w|}\] \[\frac{w^{t}(x_{n} + b - x' - b)}{|w|}\] \[max \left(\frac{1}{|w|}\right)\]If we maximize the distance between nearest point, we will get maximum margin classifier.
this is same as minimizing
$|w|$ or $w^t w$
such that |$w^{T}$ $x_{n}$ + b| = 1
formally, we can write minimzation problem
The Optimization Problem (Hard Margin)
Primal Problem
\(\frac{1}{2}( w^tw )\)
such that
\[y_{n}(w^tx_{n} + b) \ge 1\]Using Langrange Multiplier
this can be written as
\(\implies \frac{1}{2}\left( w^tw \right) \ - \sum_{i}^n \alpha_{i}\left[ y_{i}(w^tx_{i} + b)- 1 \right]\) subject to $\alpha_{i} \ge 0$
Lets take derivative w.r.t paramters L($\alpha$, w, b)
\[\frac{\partial{L}}{\partial{b}} = \sum_{i}^n\alpha_{i}y_{i}\] \[\frac{\partial{L}}{\partial{\alpha_{i}}} = y_{i}(w^tx_{i} + b)- 1\] \[\frac{\partial{L}}{\partial{w}} = w - \sum_{i}^n \alpha_{i}y_{i}x_{i}\]For Optimal parameter, each derivative should be zero
\[w = \sum_{i}^n \alpha_{i}y_{i}x_{i}\] \[\sum_{i}^n\alpha_{i}y_{i} = 0\]Putting values of above two eqn in Loss function
Dual Problem
\(\alpha_{i} \ge 0 \quad and \quad \sum_{i}^n \alpha_{i} y_{i} = 0\) this is a function of α only
This can be written as quadratic programming
\[\min_{\textcolor{blue}{\boldsymbol{\alpha}}} \frac{1}{2} \textcolor{blue}{\boldsymbol{\alpha}}^\top \begin{bmatrix} y_1 y_1 \mathbf{x}_1^\top \mathbf{x}_1 & y_1 y_2 \mathbf{x}_1^\top \mathbf{x}_2 & \dots & y_1 y_N \mathbf{x}_1^\top \mathbf{x}_N \\ y_2 y_1 \mathbf{x}_2^\top \mathbf{x}_1 & y_2 y_2 \mathbf{x}_2^\top \mathbf{x}_2 & \dots & y_2 y_N \mathbf{x}_2^\top \mathbf{x}_N \\ \dots & \dots & \dots & \dots \\ y_N y_1 \mathbf{x}_N^\top \mathbf{x}_1 & y_N y_2 \mathbf{x}_N^\top \mathbf{x}_2 & \dots & y_N y_N \mathbf{x}_N^\top \mathbf{x}_N \end{bmatrix} \textcolor{blue}{\boldsymbol{\alpha}} + \underbrace{(-\mathbf{1}^\top)}_{\text{linear}} \textcolor{blue}{\boldsymbol{\alpha}} \\\] \[\text{subject to} \quad \underbrace{\mathbf{y}^\top \textcolor{blue}{\boldsymbol{\alpha}} = 0}_{\text{linear constraint}} \\\] \[\underbrace{\mathbf{0}}_{\text{lower bounds}} \le \textcolor{blue}{\boldsymbol{\alpha}} \le \underbrace{\boldsymbol{\infty}}_{\text{upper bounds}}\] \[\alpha_{i}\left[ y_{i}(w^tx_{i} + b)- 1 \right] \ge 0\]for support vectors \(\alpha_{i} >0\)
Only support vectors define the margin, rest doesn’t contribute to the decision boundary.
\[w = \sum_{sv}\alpha_{i}y_{i}x_{i}\]This is important result between out of sample error rate and the number of support vectors, lower the number of support vectors, better the model. This is the main reason SVM was very famous pre deep learning era, since it gurantees the error. this is geometric gurantee that model is not overfitting.
\[\mathbb{E}[E_{\text{out}}] \leq \frac{\mathbb{E}[\# \text{ of SV's}]}{N - 1}\]Suppose we do a non linear transformation on x
\[Maximize \quad L(\alpha) = \sum_{i}^n \alpha_{i} - \frac{1}{2}\sum_{i}^n\sum_{j}^my_{i}y_{j}\alpha_{i}\alpha_{j}z_{i}z_{j}\]The constraints remains same,
Generalized inner Product
Let’s look at the beauty of Z transformation. \(\begin{align*} \textcolor{myviolet}{\mathbf{z}} &= \Phi(\mathbf{x}) = (1, x_1, x_2, x_1^2, x_2^2, x_1 x_2) \\[1.5em] K(\mathbf{x}, \mathbf{x}') &= \textcolor{myviolet}{\mathbf{z}}^\top \textcolor{myviolet}{\mathbf{z}}' = 1 + x_1 x'_1 + x_2 x'_2 + {} \\ &\quad \quad \quad \quad \quad \quad x_1^2 {x'_1}^2 + x_2^2 {x'_2}^2 + x_1 x'_1 x_2 x'_2 \end{align*}\)
\[\begin{bmatrix} y_1 y_1 K(\mathbf{x}_1, \mathbf{x}_1) & y_1 y_2 K(\mathbf{x}_1, \mathbf{x}_2) & \dots & y_1 y_N K(\mathbf{x}_1, \mathbf{x}_N) \\ y_2 y_1 K(\mathbf{x}_2, \mathbf{x}_1) & y_2 y_2 K(\mathbf{x}_2, \mathbf{x}_2) & \dots & y_2 y_N K(\mathbf{x}_2, \mathbf{x}_N) \\ \dots & \dots & \dots & \dots \\ y_N y_1 K(\mathbf{x}_N, \mathbf{x}_1) & y_N y_2 K(\mathbf{x}_N, \mathbf{x}_2) & \dots & y_N y_N K(\mathbf{x}_N, \mathbf{x}_N) \end{bmatrix}\]rest everything remains same.
The Optimization Problem (Soft Margin)
Primal Problem

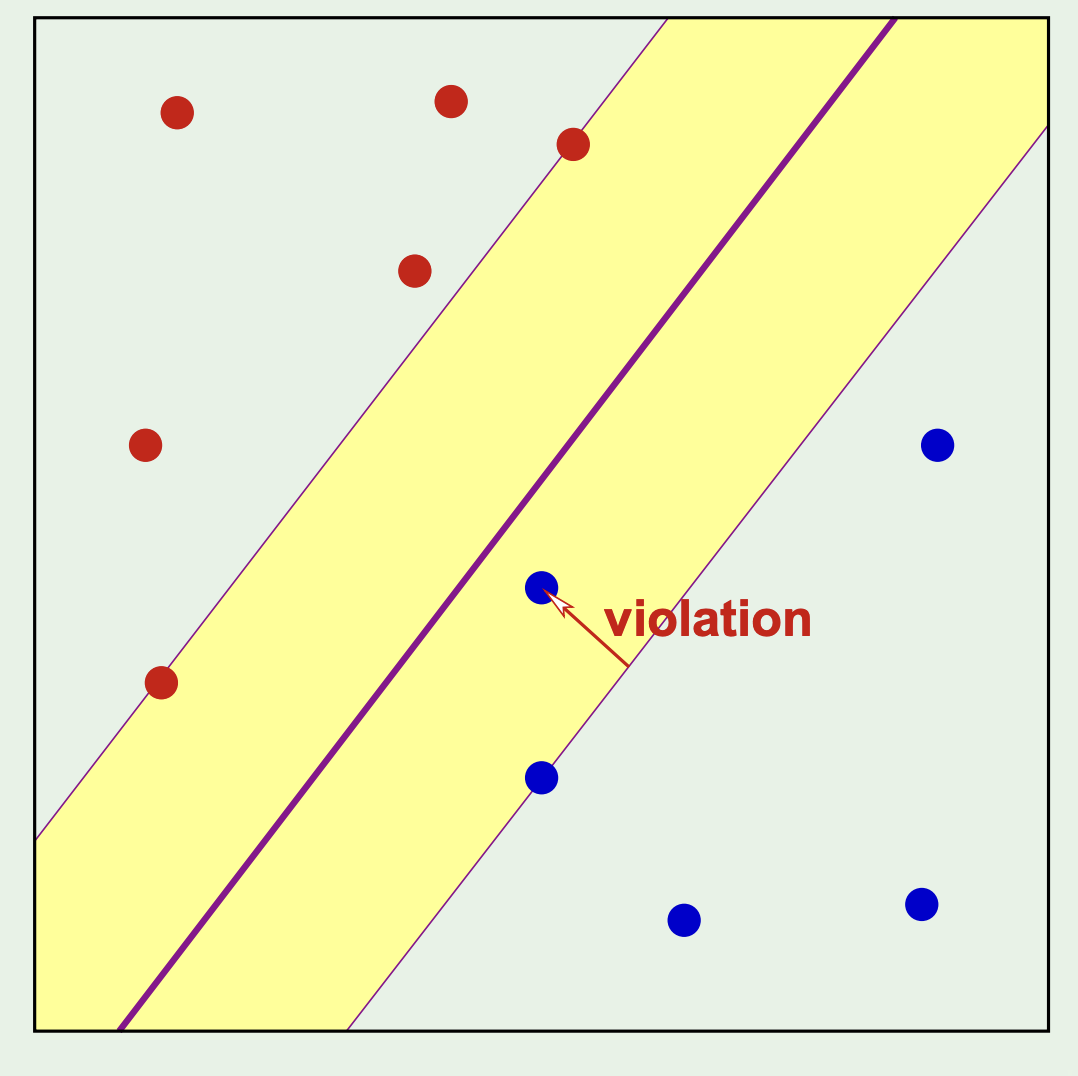

We are trying to minimize the total voilations as well as maximize the margin by minimizing the w
Lagrange formulation
Putting these values in our $\mathcal{L}(\mathbf{w}, b, \boldsymbol{\xi}, \boldsymbol{\alpha}, \boldsymbol{\beta})$
Look at
\[\sum_{n=1}^N C\xi_n - \sum_{n=1}^N \alpha_n \xi_n -\sum_{n=1}^N\beta_{n}\xi_n\] \[\sum_{n=1}^N \alpha_n y_{n} b\]these cancel each other, this is the final form we are getting
Dual Problem
\(\begin{aligned}
\text{Maximize} \quad & \mathcal{L}(\boldsymbol{\alpha}) = \sum_{n=1}^{N} \alpha_n - \frac{1}{2} \sum_{n=1}^{N} \sum_{m=1}^{N} y_n y_m \alpha_n \alpha_m \mathbf{x}_n^\top \mathbf{x}_m \quad \text{w.r.t. to } \boldsymbol{\alpha} \\[1em]
\text{subject to} \quad & 0 \leq \alpha_n \leq C \quad \text{for } n = 1, \cdots, N \quad \text{and} \quad \sum_{n=1}^{N} \alpha_n y_n = 0 \\[2em]
& \implies \mathbf{w} = \sum_{n=1}^{N} \alpha_n y_n \mathbf{x}_n \\[1em]
& \text{minimizes} \quad \frac{1}{2} \mathbf{w}^\top \mathbf{w} + C \sum_{n=1}^{N} \xi_n
\end{aligned}\)
Conclusion
We derived the Quardratic form for both SVM (soft and hard margin), the only difference is bound on α
